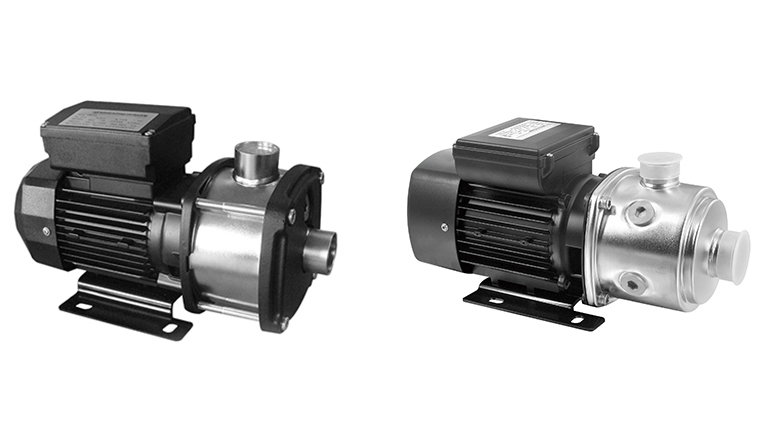

multistage stainless steel pump
WASSERMANN has been operating in the electric pump industry for more than 20 years.
It is a company that is committed to study, to develop, to manufacture and to industrialized pumping systems.
Operating Conditions
Liquid temperature up to -20°C to 104°C
Ambient temperature up to +40℃
Max.Working pressure 10bar
Continuous duty

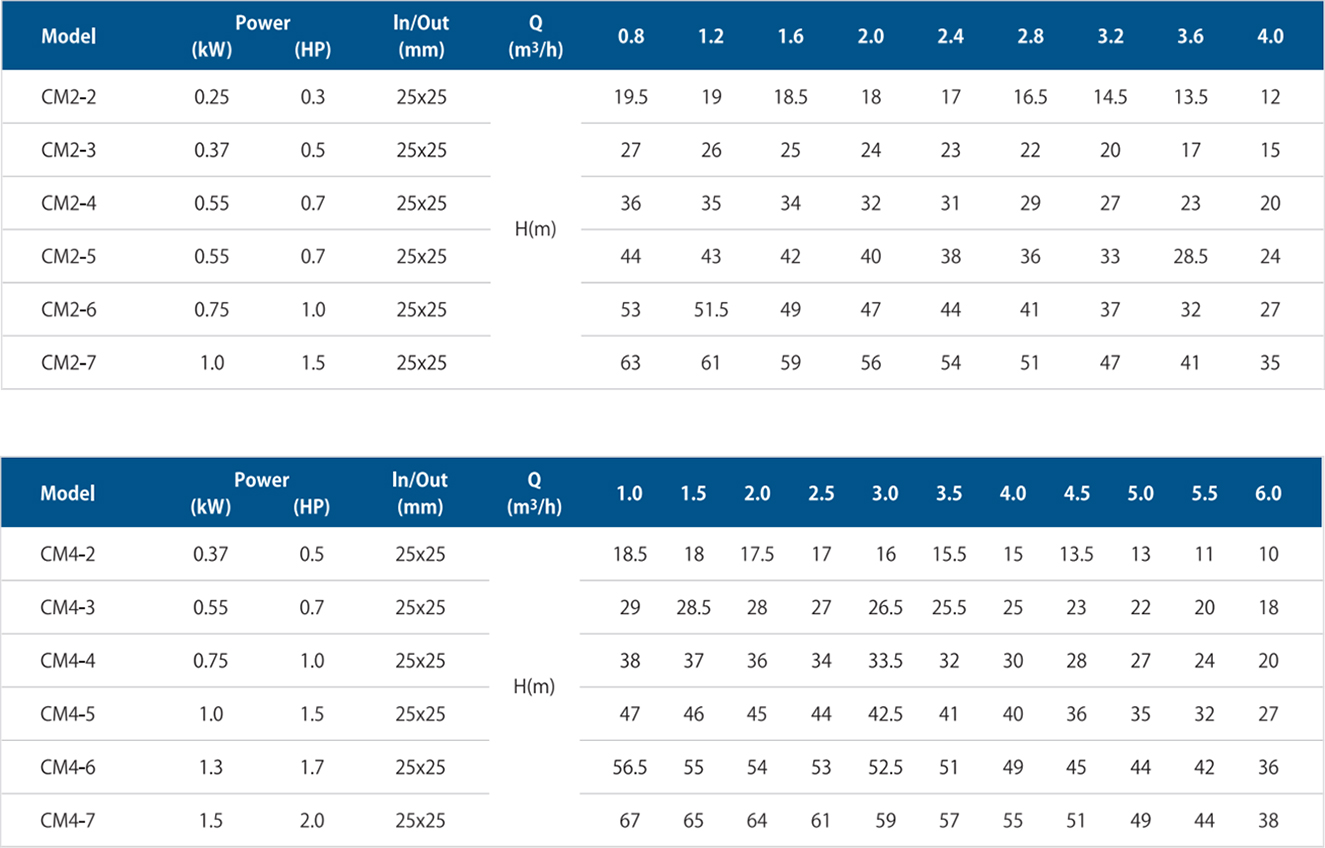

Performance Range
Flow rate up to 28m³/min
Head up to 76m
.jpg)

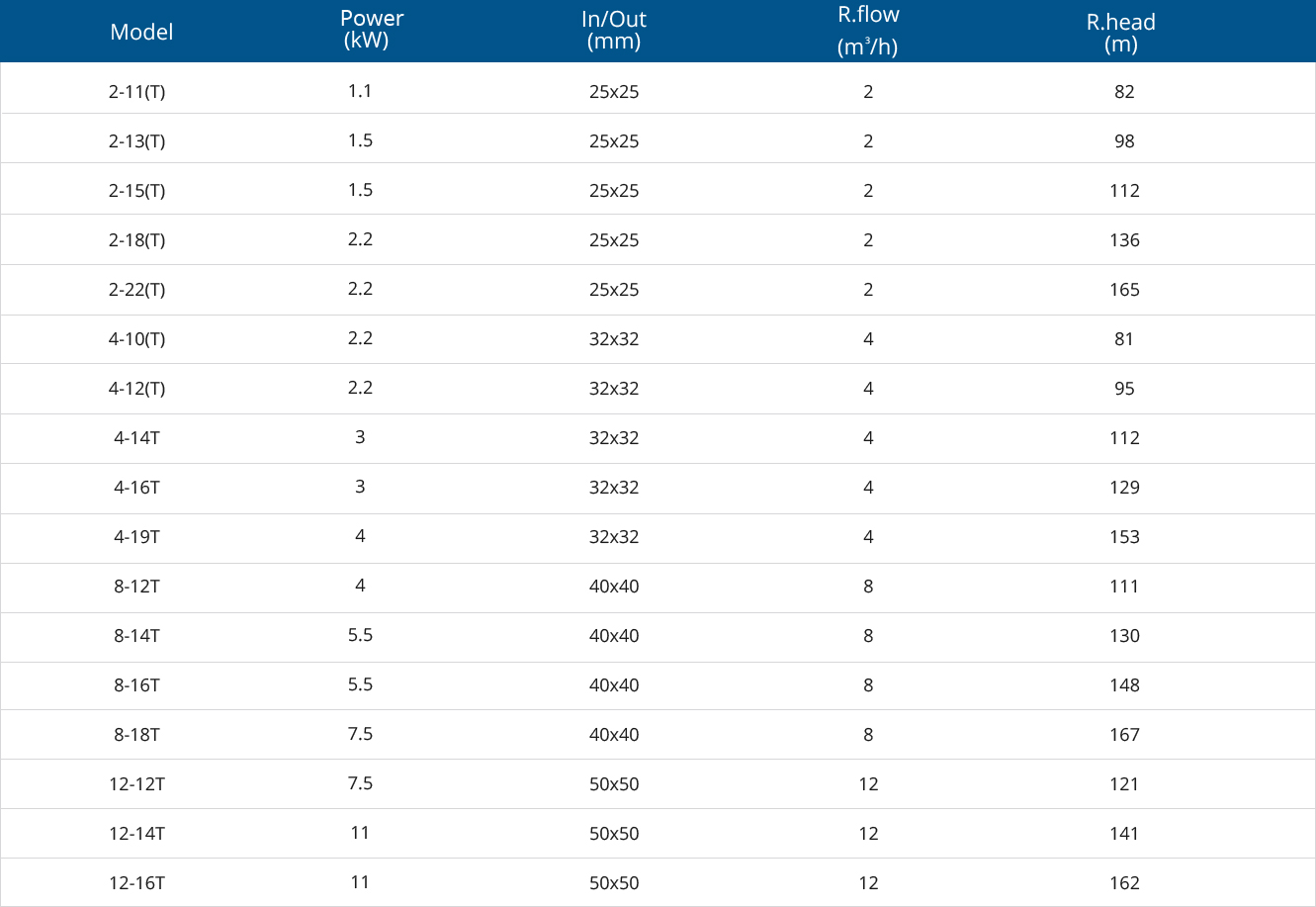

product parameter

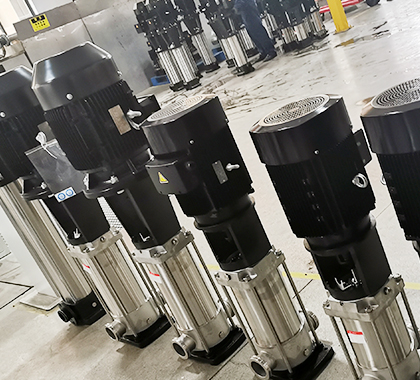

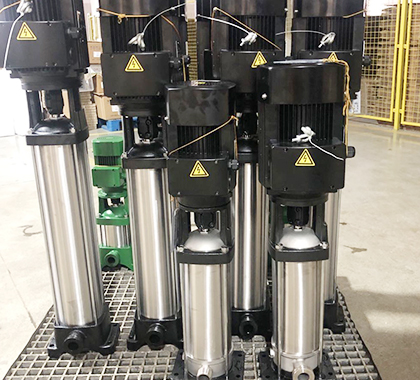

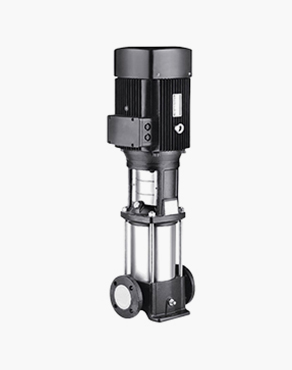

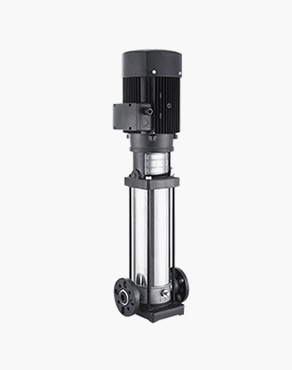

CDLE, CDL,CDLF SERIES STAINLESS STEEL PUMP
CDLE, CDL and CDLF are non-self priming vertical multistage centrifugal pump, the pumps are available with-standard motor, the inlet and outlet are located at the pump bottom at the same plane (inline type). all pumps are equipped with a maintenance-free mechanical seal set of the cartridge type
CDLF all the wet parts are constructed from stainless steel AISI304 or AISI316

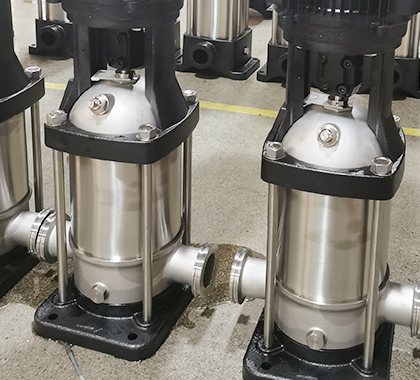

CDL suction/discharge mounting is from cast iron

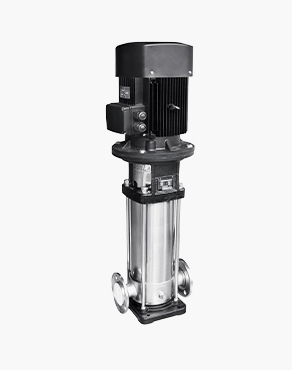

CDLE suction/discharge mounting is from stamped stainless steel, more economical
Wide water temperature range:-20°C ~+104°C
With thermal protector incorporated in the winding for single phase pumps, and available on request for three phase pumps
Three type of connection available on request, DIN-FGJ flange connection, union connection, PJE clamp connection

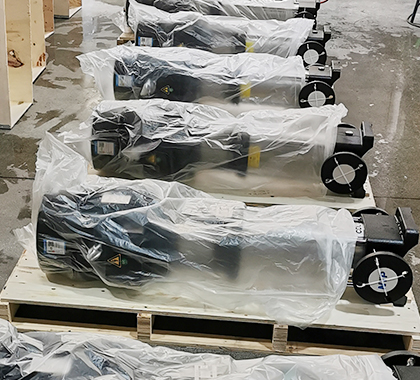

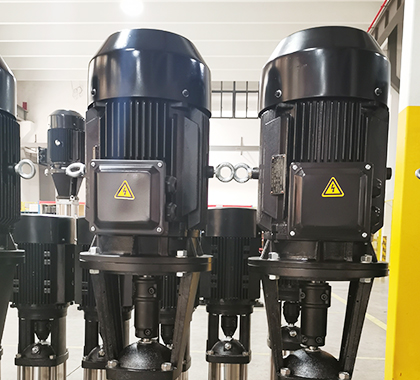

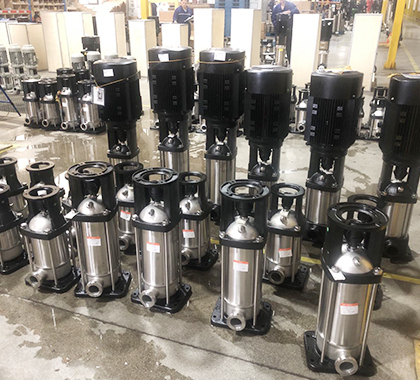

Display of use
application scenarios
For clean liquids, without abrasives, which are non-aggressive to the pump materials.
For water supply.
For domestic use, for civil and industrial applications, for garden use and irrigation.
